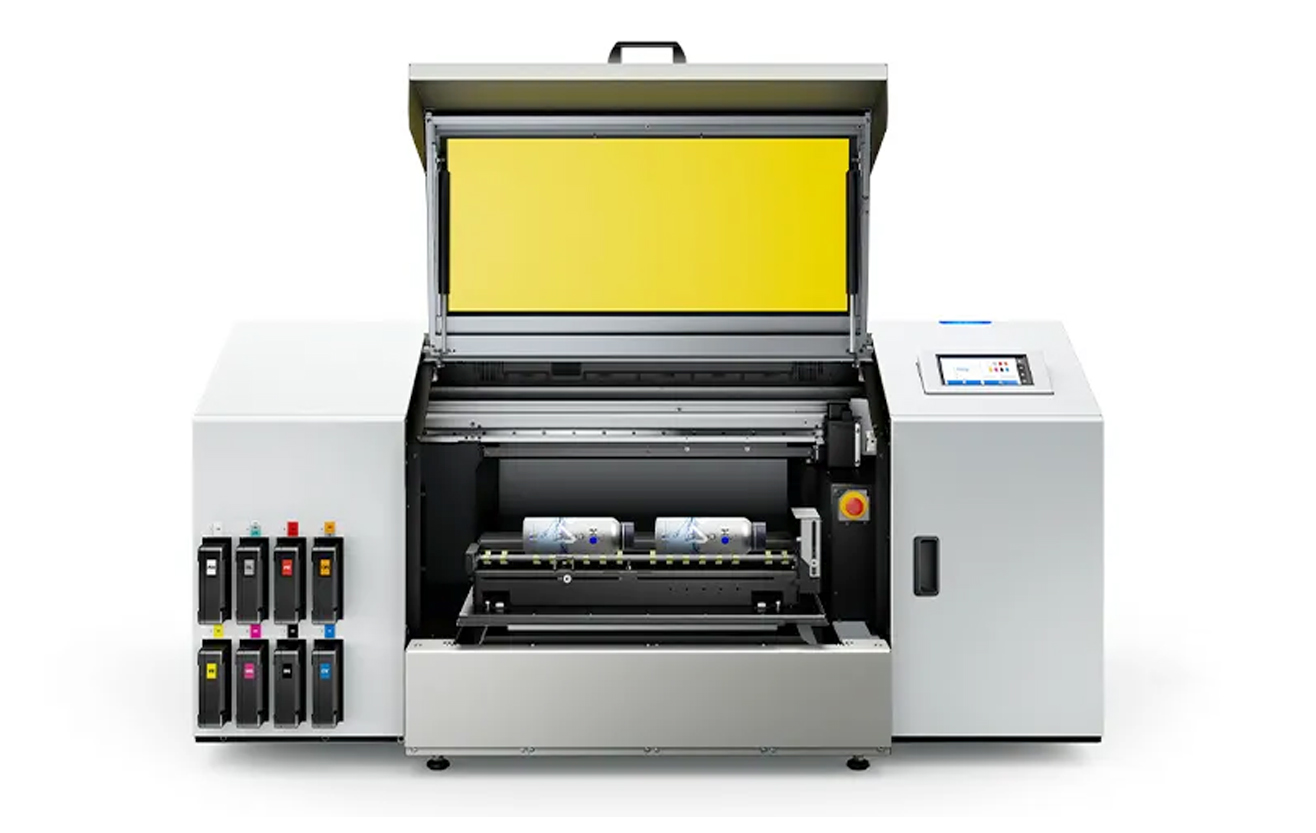

The Roland VersaOBJECT MO Series UV Flatbed Printers redefine direct-to-object printing with unmatched quality, speed, and versatility. Designed for businesses ready to scale, these advanced printers deliver high-definition results on flat, curved, and cylindrical surfaces with ease. Featuring powerful UV lamps, staggered printheads, and intuitive touchscreen control with VersaWorks 7 RIP software, the MO Series makes it simple to produce vibrant, durable, and customized prints on a wide variety of materials and objects.
The MO Series UV printers deliver fine details, vibrant images, and smooth gradations with advanced printheads and LED technology. Orange and Red inks expand the color gamut, while high-opacity white and textured printing unlock endless creative possibilities.

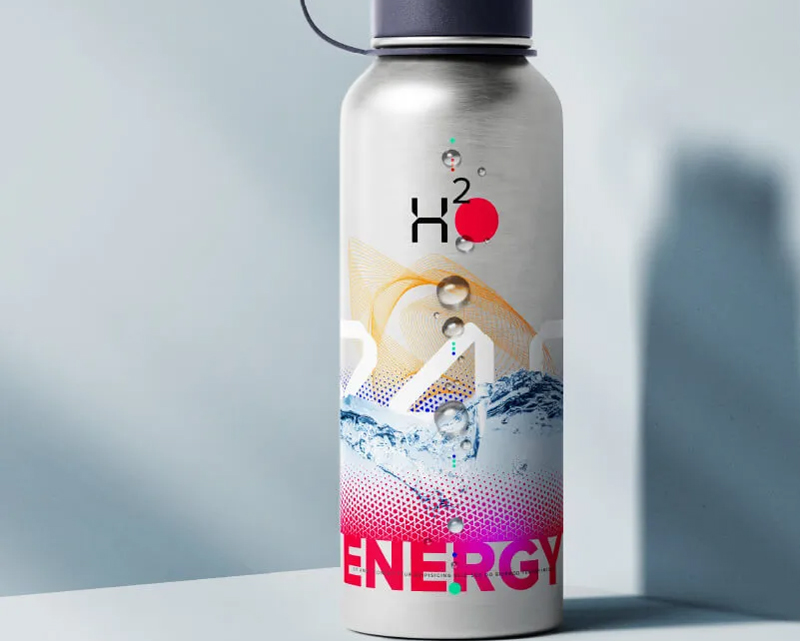

With the MO Series, you can create UV DTF decals to transfer detailed designs onto diverse surfaces and shapes—without weeding. Perfect for customizing phone cases, bottles, mugs, leather goods, and promotional items with vibrant photos, text, and logos.
The MO Series’ newly designed staggered printheads delivers exceptional print quality at speeds that double productivity.
Newly developed UV lamps – twice as powerful than conventional lamps – cure the inks instantly for optimum productivity.
The MO Series comes with a vacuum bed as standard, which lets you print on a wider range of substrates including materials that are thinner, more flexible, and lighter in weight.
| Model | MO-240 | MO-180 | ||||||
| Printing Method | Piezo ink-jet method | |||||||
| Attachable
objects
to be printed on |
Width | Max. 25.1 in. (640 mm) | Max. 19.2 in. (488 mm) | |||||
| Length | Max. 19.2 in. (488 mm) | Max. 13.1 in. (335 mm) | ||||||
| Thickness | Max. 8 in. (204 mm) | Max. 8 in. (204 mm) | ||||||
| Weight | Max. 17.6 lb. (8 kg) (When using a vacuum table: max. 8.8 lb. [4 kg]) | |||||||
| Printing width/printing length (width x length) | Max. 24 in. × 18 in. (610 mm × 458 mm) | Max. 18 in. × 12 in. (458 mm × 305 mm) | ||||||
| Ink |
Type | ECO-UV (EUV5P) 750 ml pouch, UV-Ink (EUV-A) 750 ml pouch, UV-Ink (V-BOND) 750 ml pouch | ||||||
| Colors |
ECO-UV (EUC5P) Eight colors (Cyan, Magenta, Yellow, Black, Gloss, White, Orange, Red) Seven colors (Cyan, Magenta, Yellow, Black, White, Orange, Red) and Primer Seven colors (Cyan, Magenta, Yellow, Black, Gloss, White, Red) and Primer Seven colors (Cyan, Magenta, Yellow, Black, White x2, Orange and Red） Six colors (Cyan, Magenta, Yellow, Black, Gloss, White x2) and Primer Six colors (Cyan, Magenta, Yellow, Black, Gloss x2, and White x2） Four colors (Cyan, Magenta, Yellow, Black) x2 UV-Ink (EUV-A) Six colors (Cyan, Magenta, Yellow, Black, Gloss x2, and White x2） UV-Ink (V-BOND) Six colors (Cyan, Magenta, Yellow, Black, Gloss, and White) |
|||||||
| Ink-curing unit |
Built-in UV-LED lamp | |||||||
| Printing resolution (dots per inch) | Max. 1,200 dpi | |||||||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | |||||||
| Power-saving function | Automatic sleep feature | |||||||
| Power requirements | 100–240 Va.c. 50/60 Hz 3.5A | |||||||
| Power consumption |
During operation | Approx. 290 W | ||||||
| Sleep mode | Approx. 70 W | |||||||
| Acoustic noise
level |
During operation | 60 dB (A) or less | ||||||
| During standby | 49 dB (A) or less | |||||||
| Dimensions (width x depth x height) | 63.1 in. × 49.9 in. × 30.0 in. (1,601 mm × 1,267 mm × 760 mm) | 57.1 in. × 37.9 in. × 30.0 in. (1,449 mm × 961 mm × 760 mm) | ||||||
| Weight | 465.18 lb. (211 kg) | 383.61 lb. (174 kg) | ||||||
| Environment | During operation(*1) | Temperature: 68 to 89.6 °F (20 to 32 °C), Humidity: 35 to 80 %RH (no condensation) | ||||||
| Not operating | Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 %RH (no condensation) | |||||||
| Included items | Power cord, cleaning liquid, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect) etc. | |||||||
