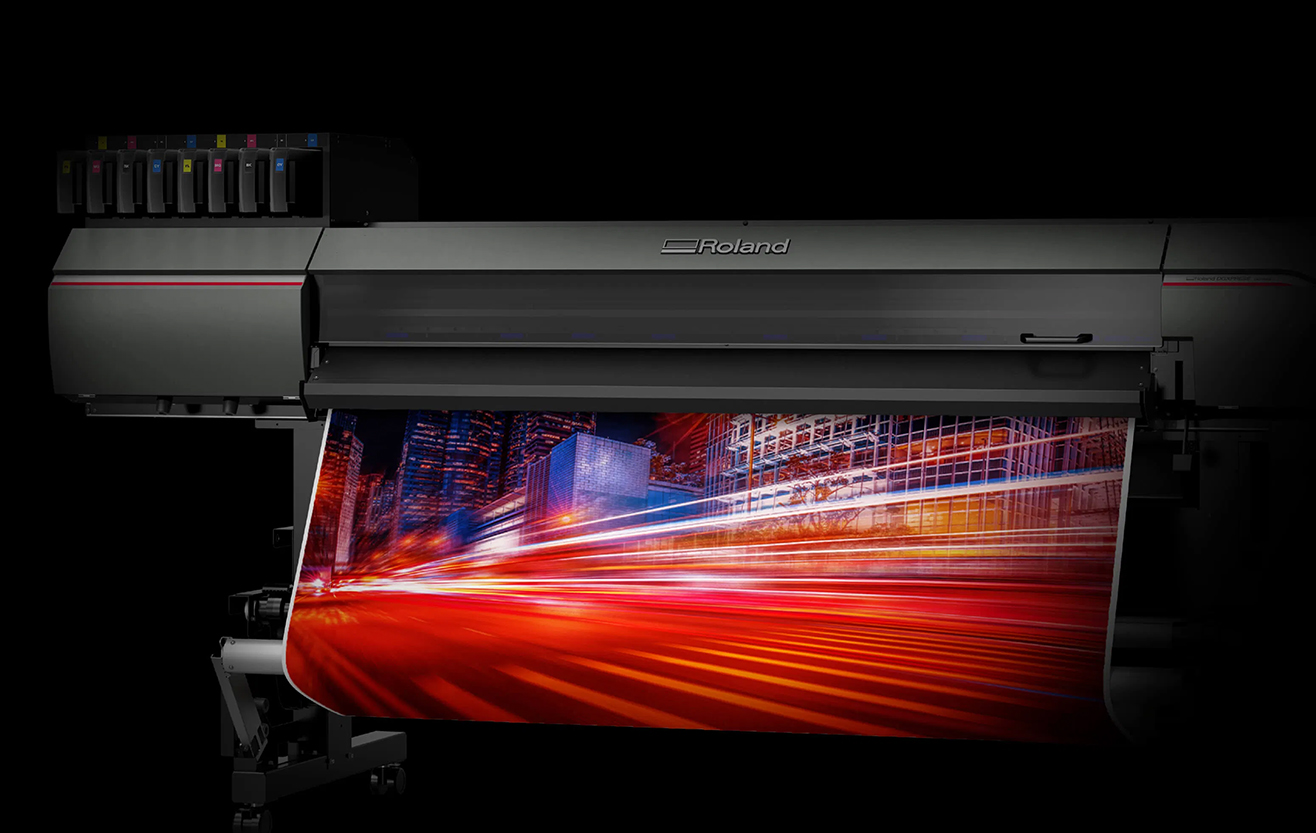

DGXPRESS is the ideal solution for those who need professional, reliable equipment which can exceed the demands of a thriving economy.
Every element of the DGXPRESS UV printing solution is meticulously refined to deliver high-speed output with healthy margins. With instant drying there's no need to wait for post-processing, letting you produce more and grow faster.
Roland DG's UV printing solutions are crafted with precision to deliver sharp detail and stunning colour to stand out from the competition.
The addition of gloss UV ink gives you the ability to produce a wide range of special effects, further enhancing your output.
Roland DG invented print and cut technology in 1995, creating an outstanding breadth of opportunities for print professionals.
With print and cut, you can create a wide range of applications from stickers to signage, increasing your profit-making capabilities with the help of:
Unattended operation for large quantities of stickers and labels.
Perforation cut for faster processing after output.
Print 3 layers in a single job, even in large format or lengthy print runs, with accurate and stable output.
Get more for less with the impressively affordable price-point of the UG-641 and achieve a return on your investment even faster.
Get more stability and accuracy when printing onto thicker card stock with the ET-64 extension table*.
For smaller workshops and print rooms, the UG-641 is an ideal choice thanks to its more compact footprint.
Plug in and start working immediately thanks to Roland DG’s user-friendly interface.
Affordable and powerful, the UG Series can generate profits and pay for itself quickly.
| UG-642 | UG-641 | |||||||
| Printing method | Piezo ink-jet method | |||||||
| Media | Width | 335 to 1625 mm |
210 to 1625 mm (8.3 to 64 in.) | |||||
| Thickness |
Max. 1.0 mm (39.3 mil) with liner, for printing Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting |
|||||||
| Roll outer diameter | Max. 250 mm (9.8 in.) | Max. 210 mm (8.2 in.) | ||||||
| Roll weight | Max. 45 kg (99 lb.) | Max. 40 kg (88 lb.) | ||||||
| Core diameter | 76.2 mm (3 in.) or 50.8 mm (2 in.) | |||||||
| Printing / cutting width 1 | Max. 1600 mm (62.9 in.) | |||||||
| Ink |
Type | UV-ink (D-UAP) 750ml pouch | ||||||
| Colours |
Six Colours (Cyan, Magenta, Yellow, Black, Gloss, and White) Four colours (Cyan, Magenta, Yellow, and Black) |
|||||||
| Ink curing unit | Built-in UV-LED lamp | |||||||
| Print resolution (dots per inch) | Max. 1200 dpi | |||||||
| Cutting speed | 10 to 300 mm/s |
|||||||
| Blade force 2 | 30 to 500 gf | |||||||
| Blade | Type | Roland CAMM-1 series blade | ||||||
| Offset | 0 to 1.500 mm (0 to 59 mil) | |||||||
| Software resolution (when cutting) | 0.025 mm/step (0.98 mil/step) | |||||||
| Media heating system 3 | Front heater set temperature: 30 to 55 ℃ (86 to 131 °F) | |||||||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | |||||||
| Power-saving function | Automatic sleep feature | |||||||
| Power requirements | 100-120/220-240 Va.c. 50/60 Hz 6.5/3.2 A | |||||||
| Power consumption | During operation | Approx. 800 W | ||||||
| Sleep mode | Approx. 85 W | |||||||
| Acoustic noise level | During operation |
63 dB (A) or less | ||||||
| During standby | 58 dB (A) or less | |||||||
| Dimensions (with stand) | 2902 mm x 748 mm x 1412 mm |
2819 (W) x 781 (D) x 1316 (H) mm |
||||||
| Weight (with stand) | 209 kg (461 lb.) | 163 kg (360 lb.) | ||||||
| Environment | During operation 4 | Temperature : 20 to 32 ℃ (68 to 89.6 °F), Humidity: 35 to 80 % RH (no condensation) | ||||||
| Not operating | Temperature : 5 to 40 ℃ (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation) | |||||||
