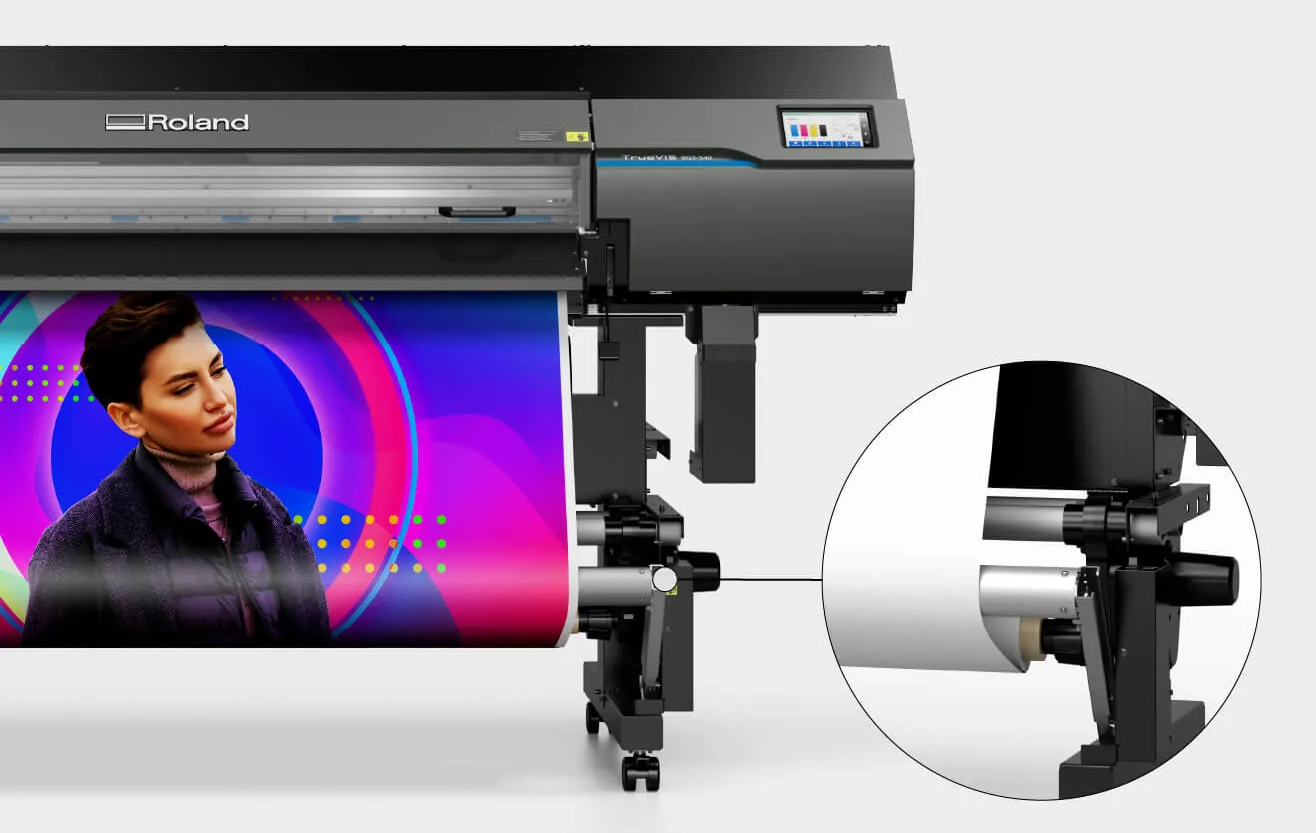

The SG3 solution comes with a robust, accurate, and easy-to-use integrated take-up unit that enables long unsupervised print runs. It features an adjustable end-cap compatible with a wide range of media tube lengths, a quick-loading one-touch media holder, and the ability to handle various media types—from thin films to heavy canvas material.

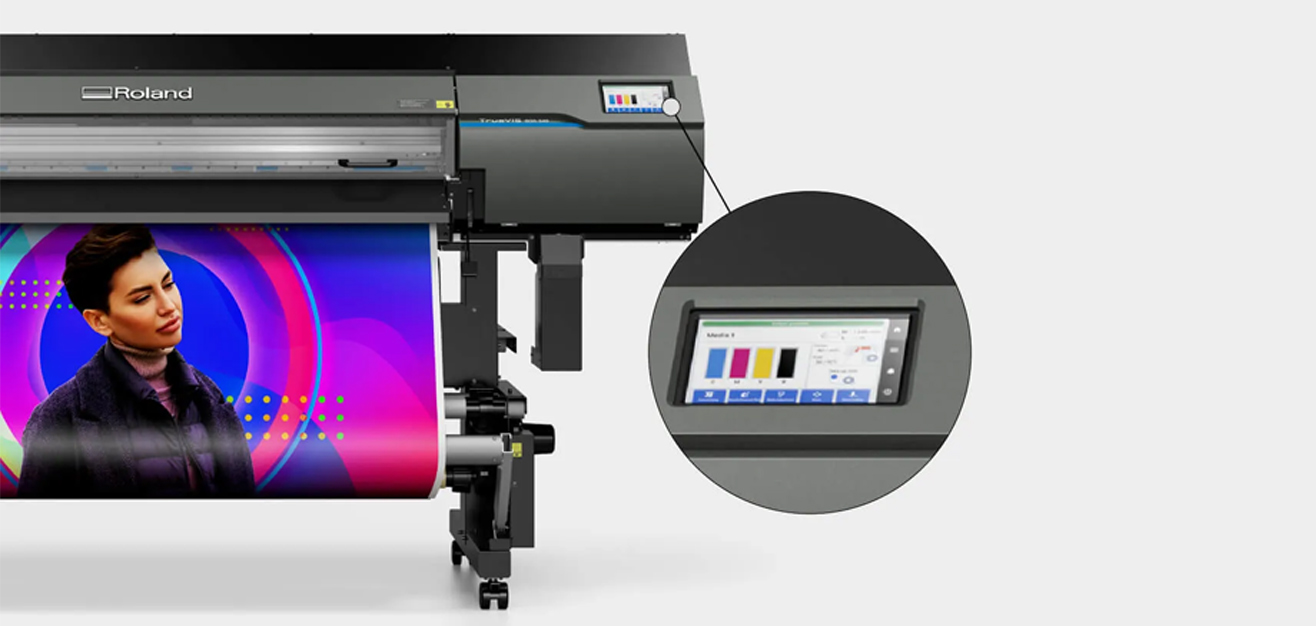

Easily control your device with the 7" touch screen, featuring clear menus for quick access to settings, notifications, ink status, print time, thumbnails, and sheet cutting.
| SG3-540 |
|||
|---|---|---|---|
| Printing Method | Piezo ink-jet method | ||
| Media | Width | 295 to 1,371 mm (11.7 to 54 in.) |
|
| Thickness | Max. 1.0 mm (39.3 mil) with liner, for printing Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting |
||
| Roll outer diameter | Max. 250 mm (9.8 in.) | ||
| Roll weight | Max. 35 kg (77 lb.) |
||
| Core diameter | 76.2 mm (3 in.) or 50.8 mm (2 in.) | ||
| Printing/cuttin width (*1) | Max. 1,346 mm (52.9 in.) | ||
| Ink | Type | TrueVIS INK 500 ml pouch | |
| Colors | Four colors (cyan, magenta, yellow, and black) | ||
| Printing resolution (dots per inch) | Max. 1,200 dpi | ||
| Cutting speed | 10 to 300 mm/s (0.39 to 11.8 in/s) | ||
| Blade force (*2) | 30 to 500 gf | ||
| Blade | Type | Roland CAMM-1 series blade | |
| Offset | 0.000 to 1.500 mm (0.0 to 59 mil) | ||
| Software resolution (when cutting) | 0.025 mm/step (0.98 mil/step) | ||
| Media heating system (*3) | Print heater set temperature: 30 to 45 °C (86 to 113 °F) Dryer set temperature: 30 to 55 °C (86 to 131 °F) |
||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||
| Power-saving function | Automatic sleep feature | ||
| Power requirement |
100-120/220-240 Va.c. |
||
| Power consumption | During operation | Approx. 1,090 W | |
| Sleep mode | Approx. 50 W | ||
| Acoustic noise level | During operation | 63 dB (A) or less | |
| During standby | 53 dB (A) or less | ||
| Dimensions (Width x Depth x Height) |
2,632 mm × 748 mm × 1,320 mm (103.7 in. x 29.5 in. x 52.0 in.) | ||
| Weight | 183 kg (404 lb.) | ||
| Environment | During operation | Temperature: 20 to 32 °C (68 to 89.6 °F), humidity: 35 to 80 % RH (no condensation) | |
| Not operating | Temperature: 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation) | ||
| Included items | Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, cleaning liquid, drain bottle, User's Manual, Software(VersaWorks, Roland DG Connect), etc. | ||
