Roland DG’s DGXPRESS range is built for professionals who demand speed, reliability, and quality.

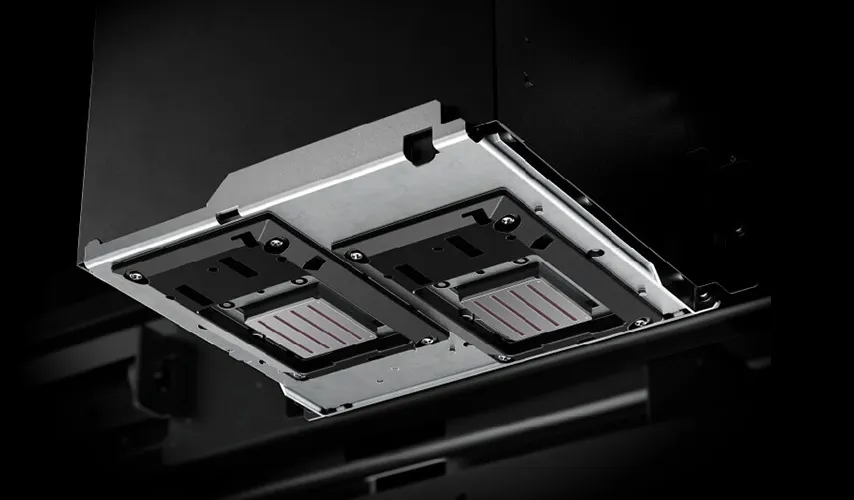

With advanced high-speed data control technology, these printers maximize printhead performance for superior clarity. The two-pass setup delivers impressive speeds of up to 249.7 ft without compromising resolution. Perfect for high-volume production, DGXPRESS ensures healthy margins and consistent results every time.

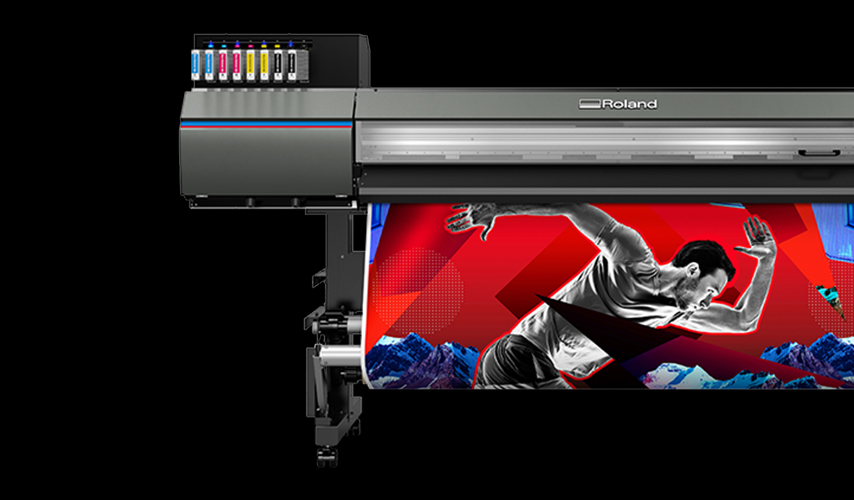

DGXPRESS printers are engineered to deliver outstanding results at high speeds without sacrificing print quality. With advanced features like VersaWorks’ True Rich Color, every print comes alive with vivid and accurate tones. Even using only CMYK inks, you can achieve stunning color reproduction and consistent clarity. Designed for professionals, DGXPRESS ensures premium output that meets the highest standards.

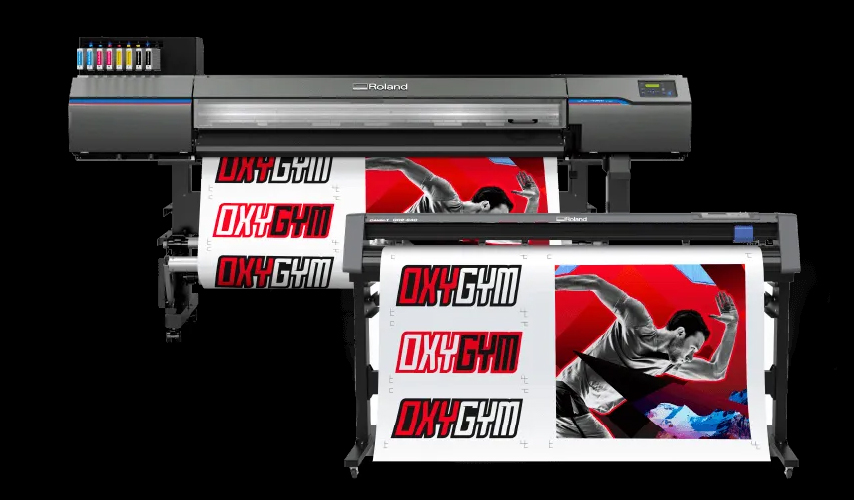

VersaWorks 6 RIP software allows users to easily add crop and registration marks to print files. This makes it possible to precisely cut graphics using a separate plotter, like Roland DG's CAMM-1 GR2 series.
Affordable and powerful, these products can generate profits and pay for themselves quickly.
Roland DG digital print solutions are available to fit any budget.
Match your customers color with ease thanks to advanced RIP features.
| Printing Method | Piezo ink-jet method | |
| Media | Width | 10.2 to 64 in. (259 to 1,625 mm) |
| Thickness | Max. 39.3 mil (1.0 mm) with liner | |
| Roll outer diameter | Max. 9.8 in. (250 mm) | |
| Roll weight | Max. 99 lb. (45 kg) | |
| Core diameter | 3 in. (76.2 mm) or 2 in. (50.8 mm) | |
| Printing width 1 | Max. 63.5 in. (1,615 mm) | |
| Ink |
Types | Eco-Solvent Ink (D-EA) 500 ml cartridge |
| Colors | Four colors (Cyan, Magenta, Yellow, and Black) | |
| Printing Resolution (dpi) | Max. 1,200 dpi | |
| Media heating system 2 | Print heater set temperature: 86 to 113 °F (30 to 45 °C) Dryer set temperature: 86 to 131 °F (30 to 55 °C) | |
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | |
| Power-saving Function | Automatic sleep feature | |
| Power Requirements | 100-120 / 220-240 Va.c. 50 / 60 Hz 8.9 / 4.5 A | |
| Power Consumption | During operation | Approx. 1,180 W |
| Sleep mode | Approx. 50 W | |
| Acoustic Noise Level | Print with Vacuum | 66 dB (A) or less |
| During Standby | 53 dB (A) or less | |
| Dimensions (width x depth x height) | 113.7 in. x 29.5 in. x 55.8 in. (2,886 mm × 748 mm × 1,415 mm) | |
| Weight | 415 lb. (188 kg) | |
| Environment | During operation 3 | Temperature : 68 to 89.6 °F (20 to 32 °C) , humidity：35 to 80 % RH (no condensation) |
| Not operating | Temperature : 41 to 104 °F (5 to 40 °C) , humidity：20 to 80 % RH (no condensation) | |
| Included items | Dedicated stand, power cord, media take-up unit, media holders, replacement blade for separating knife, cleaning liquid bottle for maintenance, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc. | |
