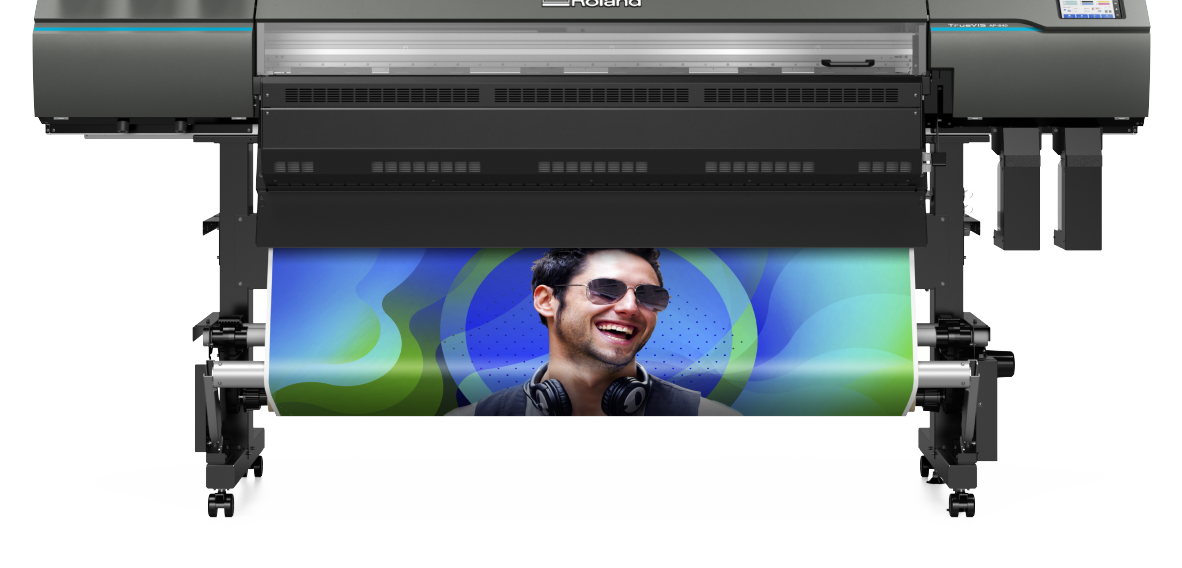

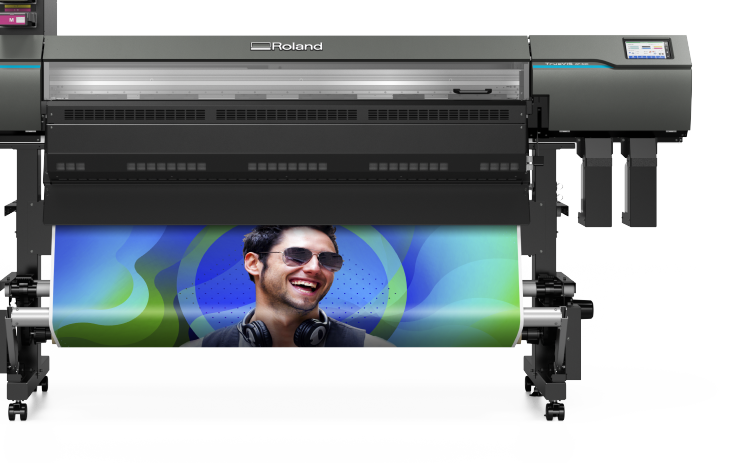

The premium 4-color large format rasin printer that delivers superior quality, consistency, and reliability over the rest.
This ensures your business delivers top-notch results — every single time — and keeps your customers coming back for more.
Natural beauty and vividness never before seen in a latex printer.
Stable and accurate printing over extended print runs.
Natural beauty and vividness never before seen in a latex printer.
Produce more with less thanks to advanced inks and features.
Dependable operations with minimal upkeep.
Equipped with user-friendly software and features.
Faster
Less Ink
Thousands

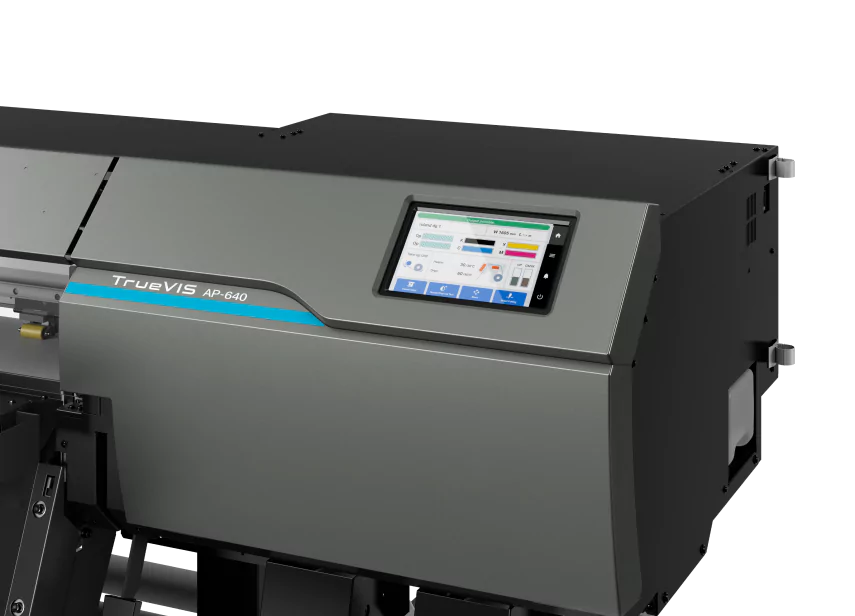

A 7-inch, full-color touch panel with intuitive settings and functions simplifies print operations. Clearly defined icons for set-up, maintenance, print volume, consumables, print status, and more allow for a conveni
A 7-inch, full-color touch panel with intuitive settings and functions simplifies print operations. Clearly defined icons for set-up,
Maximize your productivity with a built-in drying unit. Prints dry quickly and completely before proceeding to the next process, enabling you to streamline your workflows.
| Printing method | Piezo ink-jet method | |
| Media | Width | 10.2 to 64 in. (259 to 1,625 mm) |
| Thickness | Max. 0.039 in. (1.0 mm) with liner | |
| Roll outer diameter | Max. 9.8 in. (250 mm) | |
| Roll weight | Max. 99 lb. (45 kg) | |
| Core diameter | 3 in. (76.2 mm) or 2 in. (50.8 mm) | |
| Printing width (*1) | Max. 63.5 in. (1,615 mm) | |

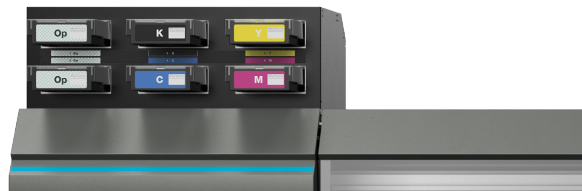

| Ink | Type | Resin/Latex ink 700 ml pouch |
| Colors | Four colors (cyan, magenta, yellow, and black) and optimizer | |
| Printing resolution (dots per inch) | Max. 1200 dpi | |
| Ink drying system (*2) | Print heater set temperature: 77 to 113°F (25 to 45°C) Dryer set temperature: 158 to 230°F (70 to 110°C) | |
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | |
| Power-saving function | Automatic sleep feature | |
| Rated Input | Printer: 200-240 Va.c. 50/60 Hz 3 A / Dryer 1: 200-240 Va.c. 50/60 Hz 10 A Dryer 2: 200-240 Va.c. 50/60 Hz 10 A | |
| Power consumption | During operation Sleep mode |
Approx. 4,000 W Approx. 65 W |
| Acoustic noise level | During operation During standby |
69 dB (A) or less 53 dB (A) or less |
| Dimensions (Width x Depth x Height) | 113.7 in. × 33 in. × 61.1 in. (2,886 mm × 836 mm × 1,550 mm) | |
| Weight (with stand) | 587 lb. (266 kg) | |
| Environment (*3) | During operation | Temperature: 68 to 86 °F (20 to 30 °C), Humidity: 20 to 80 %RH (no condensation) |
| Recommended Environment | Temperature: 68 to 77 °F (20 to 25 °C), Humidity: 40 to 60 %RH (no condensation) |
|
| Not operating | Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 %RH (no condensation) |
|
| Included items | Dedicated stand, power cords, dryers, media take-up unit, media holders, separating knife, replacement blade, cleaning liquid bottle for maintenance, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc. |
