Grow Your in-house Label Printing with Just-in-time Creation and affordable cost

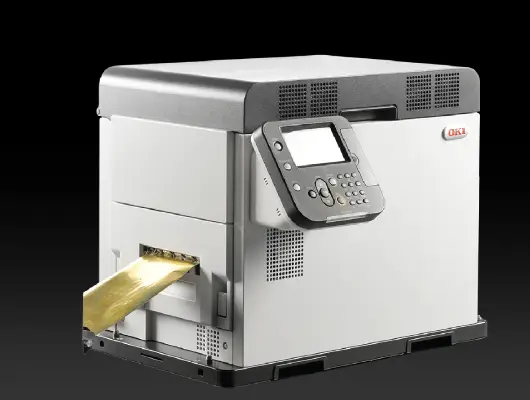

Wide range of media handling | Weatherability | CMYK + Spot color white | High resolution LED printhead | Low TCO | Variable data printing | Roll-to-roll and roll to sheet printing.The Pro1040 Label Printer offers professional four colour narrow-format printing across a range of different label media including textured papers and synthetics. Access new revenue streams with short run colour label printing services on-demand, in-house.
The Pro1040's superb media handling capability makes it easy to print on a huge range of media including textured papers and synthetics, to capture attention and help sell products. And, with a minimum volume of a single label and no set up requirements, labels can be highly tailored to specific campaigns or customer requirements.
Stand out from the crowd and attract the target audience
Ideally suited to brand owners and print houses, the Pro Series 1040 Label Printer is designed to print any quantity from a single label to many thousands. Only print what you need reducing wastage and saving valuable time and budget. With the same High Definition Colour printing and digital LED technology as OKI’s Graphic Arts Printers, the OKI Pro1040 brings creative printing to life with vibrant colours and high quality output at 1200 dpi.| Printing Method | Digital 4 LED Full-color Electrophotographic Printing Method |
|---|---|
| Media Format | Roll |
| Media Type | Plain Paper, Film, Plain Paper Label, Glossy Paper Label, Film Label, Synthetic paper Label |
| Media Width | 25.4 - 130.0mm |
| Media Thickness | 0.076 - 0.25mm |
| Label Length | 12.7 - 1,320.8mm |
| Label Width | 25.4 - 126.0mm |
| Media Detection | Gap Black Mark (printed on back of liner) None |
| Roll Outer Diameter | Max. Ф203.2mm (Ф8") |
| Core Inner Diameter | Ф76.2mm (Ф3") |
| Roll Wind Direction | Face-out, Face-in |
| Print Width | Max. 125.76mm |
| Minimum Print Margin | Top:2.12mm Bottom:2.12mm Right:2.12mm Left:2.12mm |
| Cuttable Media Length | Min. 101.6mm |
| Print Resolution | 1200 x 1200 dpi 600 x 600 dpi |
| Print Speed | Max. 152.4mm/s (6ips) |
| Interface | 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed) |
| Protocol | TCP/IP |
| Printer Language | PCL 5c emulation, PCL 6 (XL) emulation, Adobe PostScript 3 |
| Supported OS (Click here for latest OS) | Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64 |
| Processor | ARM CPU 1.2 GHz |
| Memory (Std./Max.) | 2048 MB / 2048 MB |
| Hard Disk Drive | 250 GB |
| Font | Adobe PostScript 136 fonts, PCL emulation 81 scalable fonts, 4 bitmap fonts |
| Media Sensors | Position adjustable Transmission Gap Sensor Position adjustable Reflective Black Mark (printed on back of liner) Sensor |
| Auto Cutter | Rotary blade Full cut |
| Dimensions(WxDxH) | 1,040 x 477 x 441 mm |
| Weight(includes supplies) | Approx. 61.0 kg |
| Weight(not includes supplies) | Approx. 50.0 kg |
| Operating Environment | Operating: 10 - 30 °C, 20 - 70 %RH No condensation |
| Power Source | Single phase 220 - 240 VAC ±10%, 50/60 Hz ±2% |
| Power Consumption | Operating: Max. 1,200W / Ave. 710W Idle: 27W Power Save: < 25.0W Auto-Off: < 1.0W |
| Safety& Environment Regulation | CE Mark, GS Mark |
| Unit Life | 5 Years |
| In the Box | DVD-ROM, Power cable |
