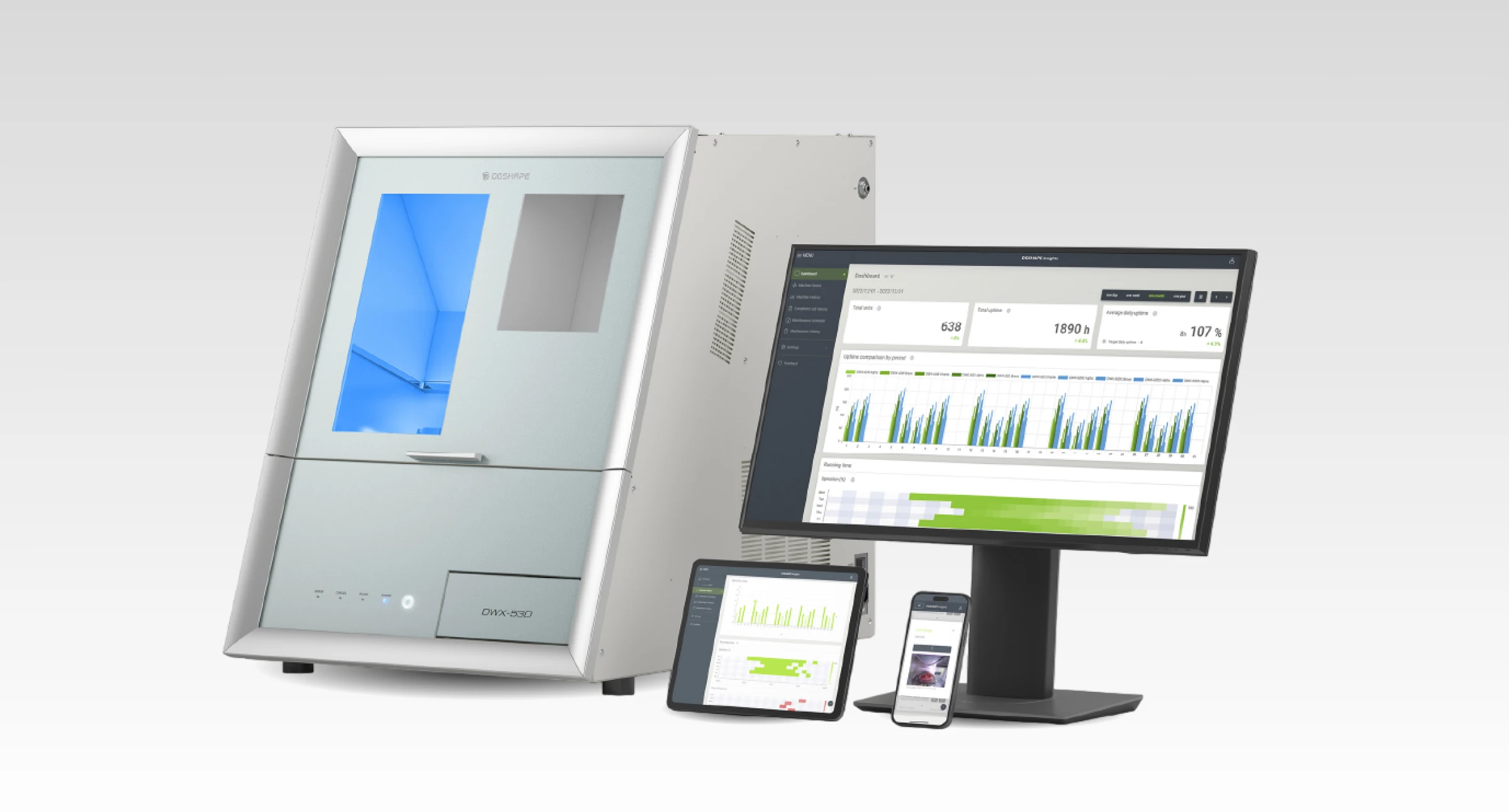

A game-changer for dental labs and clinics looking to elevate their production capabilities.
Whether your business is investing in its first milling device or you have a more established lab and want to expand your milling operations, the DWX-53D offers a user-friendly interface and cutting-edge technology that ensures seamless integration.The enhanced precision and efficiency of the DWX-53D promises superior output and reduced production times over previous models.
The compact design and versatile functionality make it a perfect fit for any clinical environment

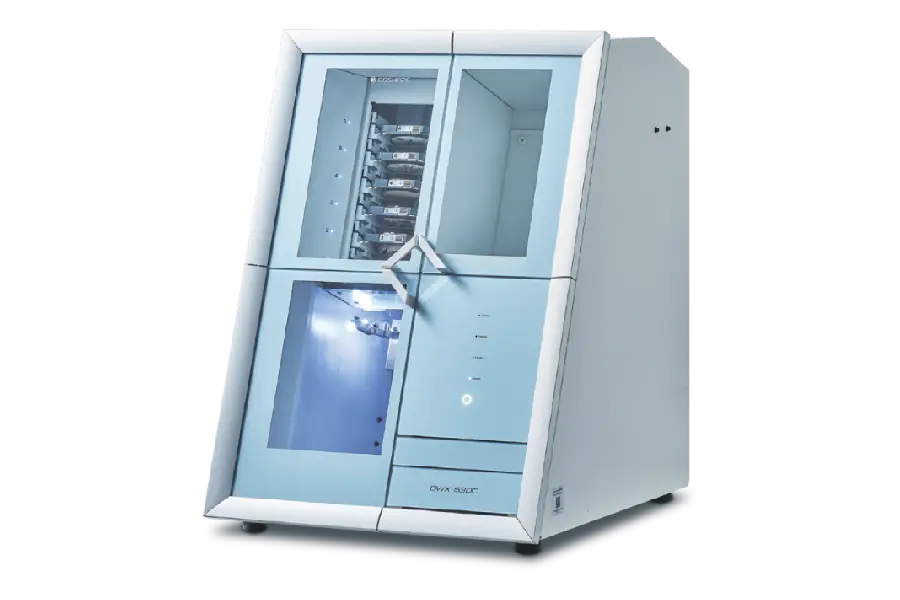

DWX-53DC is a beautifully cafted thoroughbred, concealing the power to realise the infinite potential of Dental Technicians, like an artist manipulating colors to create a masterpiece. The sophisticated look adds creativity to your lab's atmosphere. The dedicated holder allows you to install a touch panel to the front of the machine.

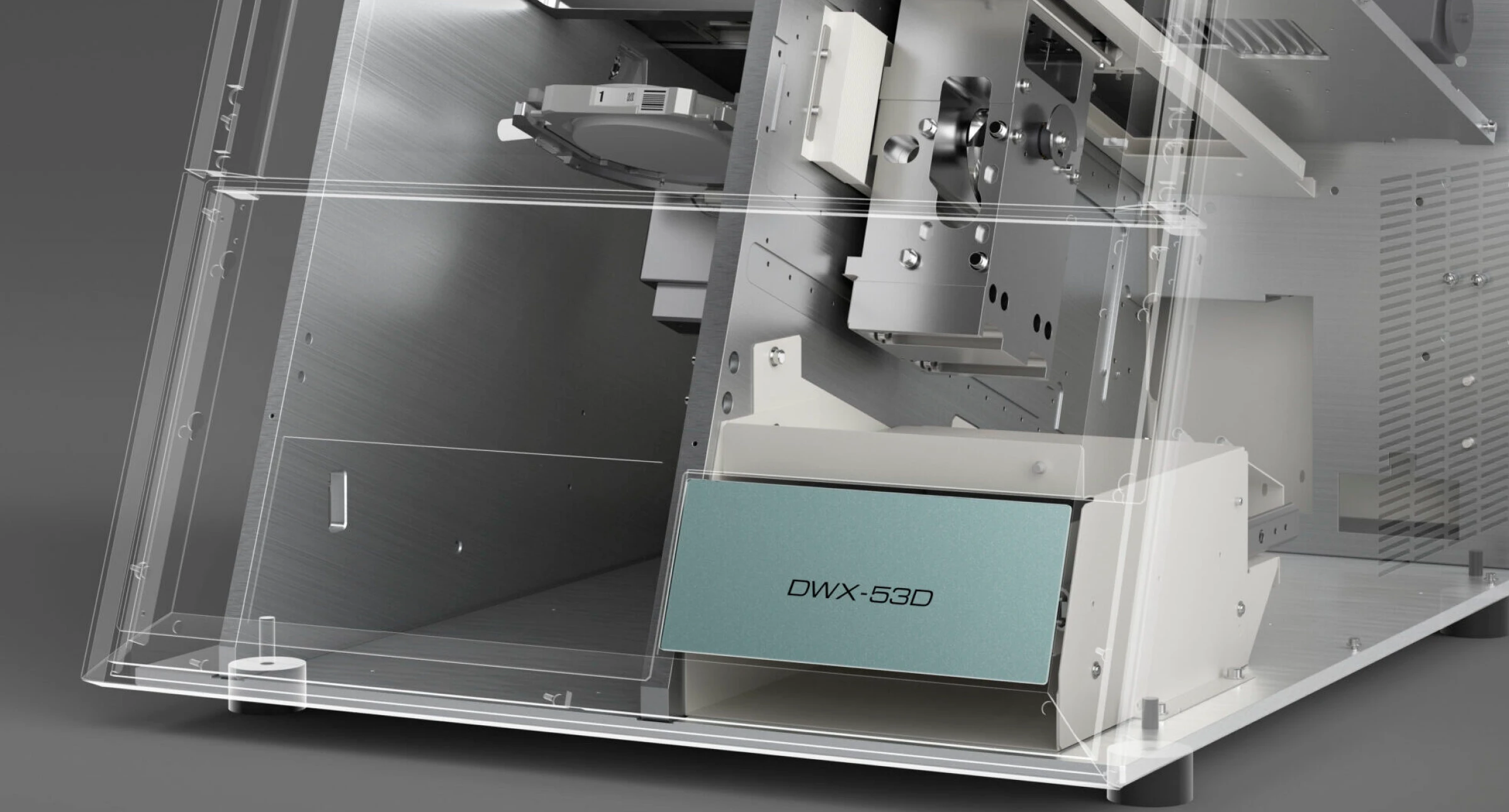

Reinforced Rigidity 2X
Improves stability, 2x rigidity, for long-lasting premium results

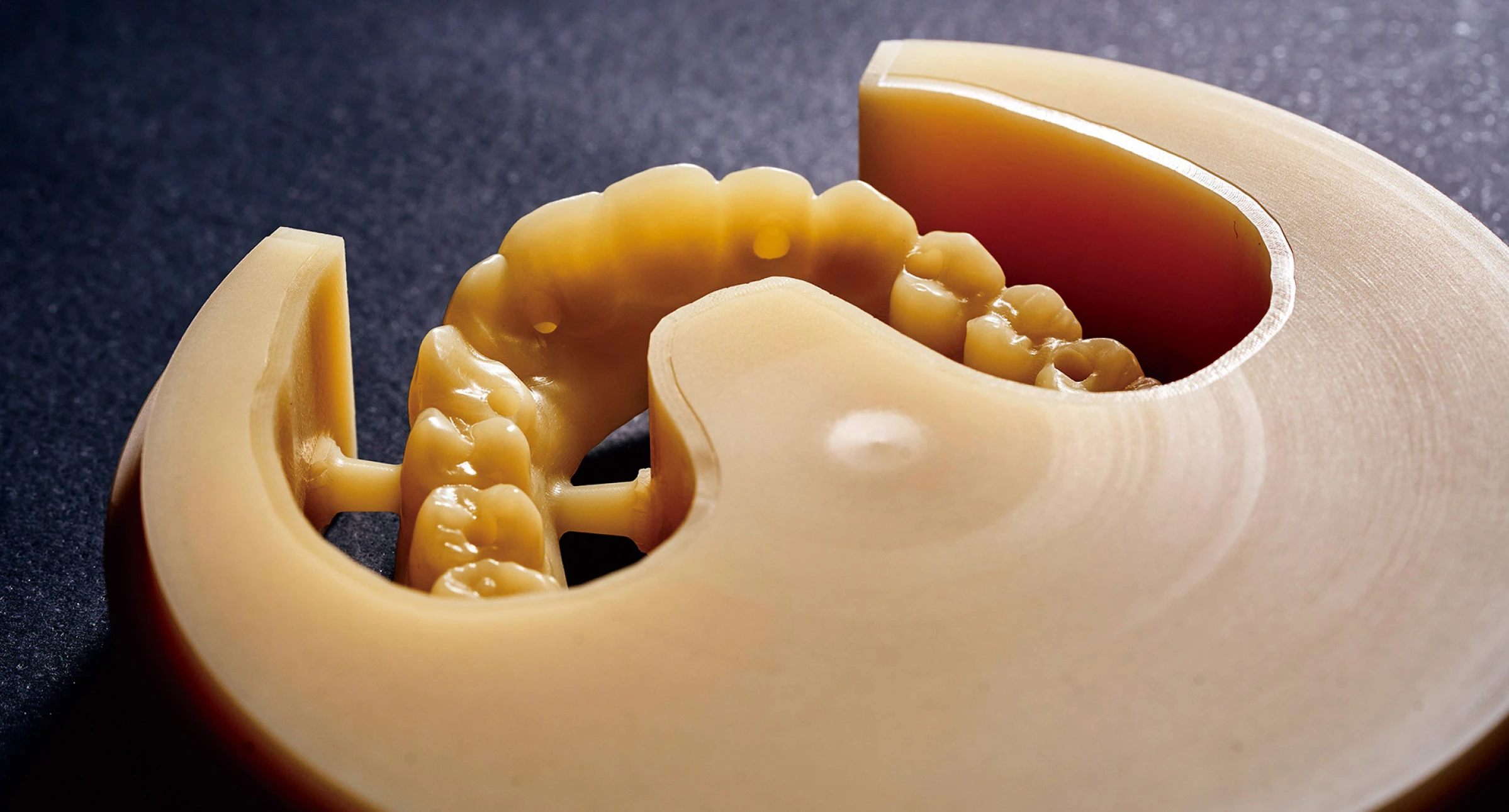

Faster Milling of PMMA Materials
Open Edge Adapter allows milling of undercuts of anatomic detail.
3x increased gripping force for smooth surfaces and bio-mechanical accuracy
Removes dust from every Surface.
Fully configurable to optimise speed or cleanliness up to 95% dust removal
| Model | DWX-52D | |
| Cuttable material | Zirconia, Wax, PMMA, Composite resin, PEEK, PEKK, Gypsum Glass fiber, reinforced resin, CoCr sinter metal, Polycarbonate | |
| Loadable workpiece shape | Disc-type (with step) | 98.5mm (diameter), 10±0.3 mm(height) Max. thickness:35 mm (< Φ 95mm) |
| Pin-type | Pin Diameter : 6mm | |
| Operating speed | XYZ axis: | XY : upto 3,000 mm/min. , Z: upto 2,700 mm/min |
| Spindle motor | Brushless DC Motor | |
| Spindle speed | 6,000 to 30,000 rpm | |
| Rotary axis travel angle | A axis | ±360° |
| B axis | ±35° | |
| Number of burs housed | 15 | |
| Attachable bur | Shank diameter | 4 mm (0.16 in.) |
| Length | 40 to 55 mm (1.57 to 2.17 in.) | |
| Compatible compressed air | 0.4 Mpa (Automatic switch) | |
| Interface | USB | |
| Control command set | RML-1, NC code | |
| Power requirements | AC 100 V to 240 V ±10%, 50/60 Hz, 2.0 A (overvoltage category II, IEC60664-1) | |
| Power consumption | Approx. 170 W | |
| Operating noise | During operation | 70 dB (A) or less (when not cutting) |
| During standby | 48 dB (A) or less | |
| External dimensions | Width x depth x height: 555 x 725 x 705 mm (21.85 x 28.54 x 27.76 in.) | |
| Weight | 105 kg (231.49 lb.) | |
| Installation environment | Indoor use at altitudes up to 2,000 m Temperature: 5 to 40° C, humidity: 35 to 80 % (no condensation) Ambient pollution degree: 2 (as specified by IEC 60664-1) Short-term temporary overvoltage: 1,440 V, long-term temporary overvoltage: 490V | |
| Included items | Power cord, power plug adapter, USB cable, Safety Precautions, Quick Access Guide, detection pin, automatic correction jig, torque screwdriver, T-shaped hexagonal screwdriver, L-shaped hexagonal wrench, collet attaching/detaching jig, milling bur holder,milling bur positioner, regulator, adapter ID labels, standard adapter, open edge adapter, adapter rack, pin-type workpiece adapter, milling burs, etc.. | |
