Print directly on shirts, shoes, denim, and much more. Expand your range with fabric bags, shoes, and complete fashion collections or you can even print on wood or canvas. Brother's multifaceted Direct To Garment (DTG) printers make it all possible.
Print on a huge range of different label media
The Pro1040's superb media handling capability makes it easy to print on a huge range of media including textured papers and synthetics, to capture attention and h
Let technology take the place of costly labor and lengthy skills training. With DTG printing, a single person can take an order, print the items, and prep everything for delivery before quickly moving on to the next job.

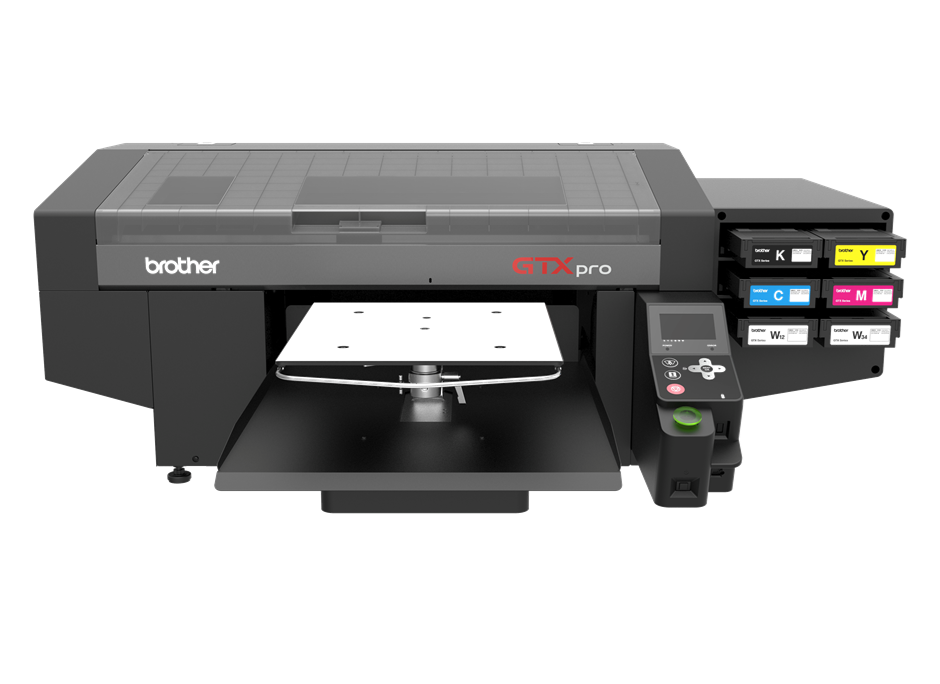

The new GTXpro from Brother: Flexible and immensely versatile. Offering all functions for mass production, the new DTG printer is suitable for everybody. It comes with a Standard Platen 14" x 18", GTX Graphics Lab Software, and installation and multi-day training. The GTXpro is the perfect solution for shops. Compact, flexible, and fast. Expand your range with personalized products like shirts, fabric bags, and shoes.
| Printing Method | Direct inkjet garment printer |
|---|---|
| Machine Dimensions | 1400mm x 1300mm x 550mm |
| Included Platen Size | 356mm x 406mm / 14'' x 16'' |
| Maximum Print Size | 406mm x 533mm / 16'' x 21'' |
| Machine Weight | Approx. 120kg including Platen. |
| Ink Type | Water-based pigment ink |
| Ink-Head Type | On demand piezo head |
| Number of Ink-Heads | 2 print heads / 8 ink channels |
| Print Resolution | 1200 dpi x 1200 dpi |
| Print Mode | Single or double for CMYK. Underbase and highlight for white. |
| Operating Conditions | 18°C - 30°C Degrees / 35% - 85% Humidity % |
| Standby Conditions | 10°C - 35°C Degrees / 20%-85% Humidity % |
| Data Output | Printer driver (USB, File output) |
| Power Supply | AC 110V-240V, 50/60Hz ± 1Hz |
| Power Consumption | 0.8A (average) (Reference: 0.4A - during circulation) |
| Ink Cure | Heat press machine can be used at 180°C (356°F) and 35 seconds duration. For higher volume production, a conveyor oven is recommended to be used at 160°C (320°F) for three and a half minutes. Time and temperature may vary depending on which manufacturer's dryer is used. |
| Pre-treatment | Before printing, apply pre-treatment using either a manual or automatic device and then dry garment using a heat-press, being sure to follow all manufacturer's instructions. Pre-treatment is necessary for white ink. |
| Operating Systems | Windows 8.1 (64bit), Windows 10 (64bit), macOS 10.14 Mojave, macOS 10.15 Catalina. |
| Interface | USB2.0, LAN(10BASE-T, 100BASE-TX, 1000BASE-T), USB Flash Memory?Under 32GB, FAT32 format). |
| Driver Operating Conditions | 2GHz CPU (minimum recommendation) 4GB RAM (minimum recommendation) |
| Display Resolution | XGA (1024×768) (minimum recommendation) |
| Recommended Applications | Adobe® Photoshop CS6/CC, Adobe ® Illustrator CS6/CC, CorelDRAW ® 2018/2019 (Windows) |
